KS07-KS08

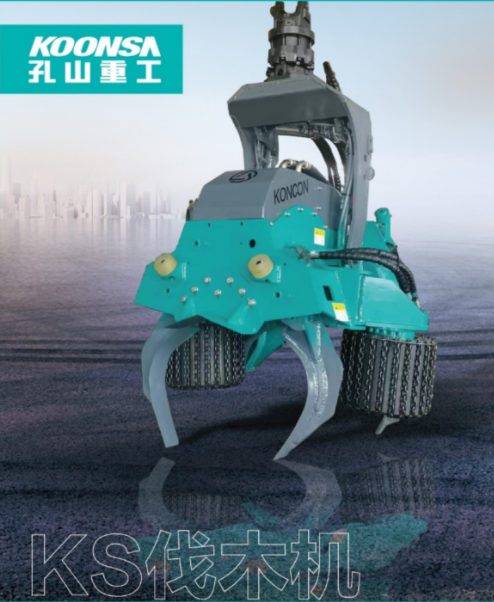

KS07-KS08 Harvester head

OnLine

TEL : +8618029255858

A Harvester head is a machine used to cut down and harvest trees. The working principle of a harvester head is to move the blade or chain saw along the tree in an inclined or horizontal direction through a mechanical or hydraulic system to cut the trunk. The hydraulic system provides power with better control and precision, cutting and cutting trees into appropriate sizes in a fast and efficient manner, and can operate at different heights and positions. It provides convenience for forestry, construction, wood industry and other fields. When using a feller, be sure to pay attention to safety matters and follow the operating procedures to improve work efficiency while ensuring your own safety.











  Model Unit KS-07 KS-08
Motor type Rated power KW 55 75
Rexroth A2FE Maximum rotational speed R/min 2500 2500
 Transport motor Maximum output torque kn 0-95 95
Rotational speed R/min 60 130
Transport wheel Iron wheel, rubber wheel PCS 2 3
Cylinder working pressure Maximum pressure KG 220 250
Grasping pressure KG 130 150
Transport pressure KG 160 180
Rotary hydraulic motor Lifting weight KG 5500 6000
Rotation speed m/min 80 80
Rotational torque n.m 800 800
Hydraulic system Working pressure KG 220 250
Hydraulic system Working Traffic L/Min 190 260
Circuit system Working voltage dcv 24 24
  Maximum opening diameter mm 650 750
  Maximum cutting diameter mm 400 550
  Supply Speed m/s 3.5-4.5 3.5-5
  Weight KG 860 1080
  Matching excavator T 12-15 18-20
  Dimensions mm 1250*1380*1780 1250*1420*1860
