KS60Z-KS300Z

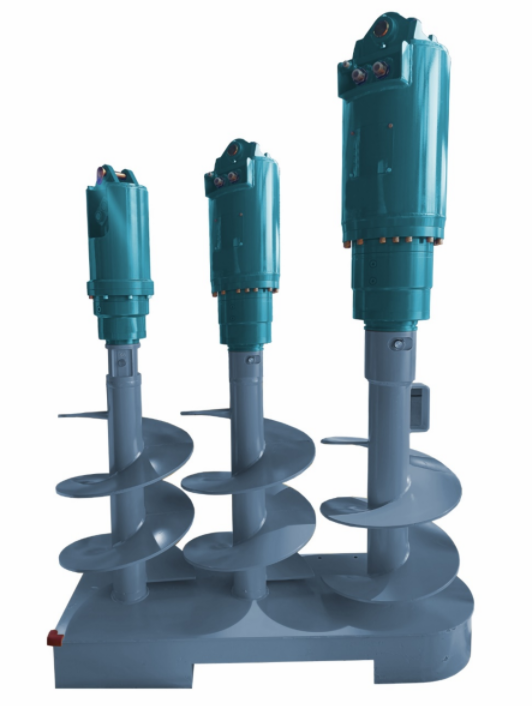

KS60Z-KS300Z Auger drilling

TEL : +8618029255858

Product Features Product parameters

The Auger drilling is one of the attachments installed on the excavator. It is mainly composed of a driving head and a drill assembly that are fixedly connected. Different sizes of drill bits can be configured according to construction requirements and hydraulically driven to meet the construction requirements for the required hole size and depth. The auger drilling has a simple structure, strong drilling ability, high construction efficiency, low operating cost and high flexibility.

Sleeve telescopic shaft and diameter:

S4: 65mm round, length 0.5m 0.8m 1m, diameter 100-900mm

S5: 75mm square, length 1m 1.5m 2m, diameter 150-900mm

S6: 75mm square, length 1.5m 2m 3m, diameter 150-1200mm

Application areas: Fences, landscaping/tree planting, pile foundation engineering, screw pile installation, pilot hole drilling.

Model	Unit	KS60Z	KS80Z	KS150Z	KS200Z	KS300Z
Matching type	T	2-6	6-15	15-20	20-25	25-40
Torque	nm	1094-4117	2570-9961	5307-20998	8314-30393	27198-59403
Pressure	Bar	80-240	80-240	80-260	160-350	160-350
Traffic	Lpm	25-92	40-150	80-170	100-250	100-250
Rotational speed	Rpm	30-68	20-48	15-48	10-22	10-22
Output shaft	mm	65Rnd	75Rnd	75Rnd	75Rnd	110Rnd
Weight	KG	110	115	200	721	721
Maximum hole diameter(clay/sand)	mm	300	800	1100	1200	1500
Maximum hole diameter(Soil)	mm	500	1000	1500	1600	2000
